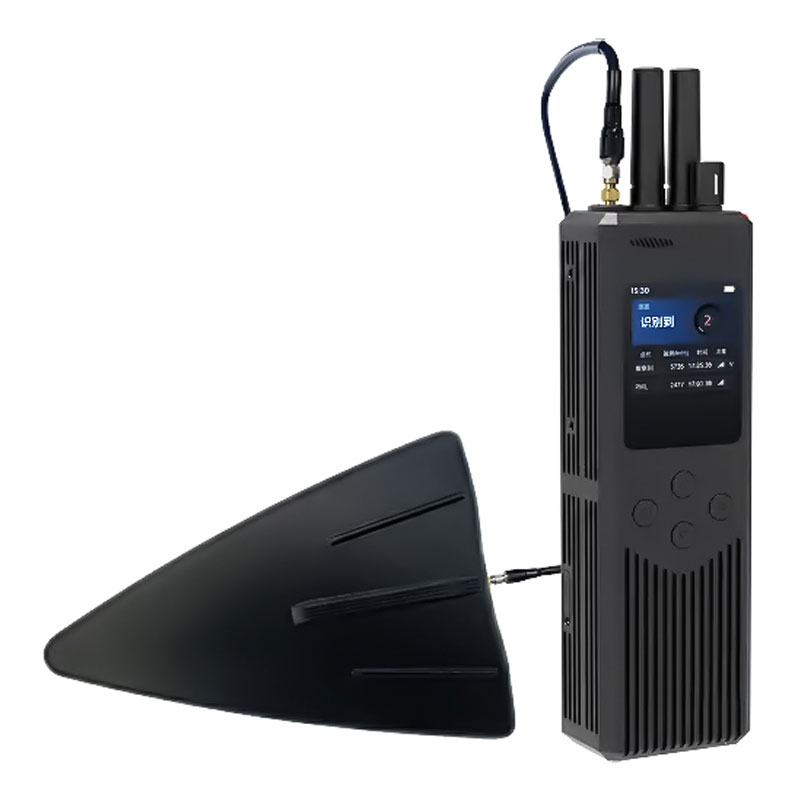

Tragbarer Drohnen-Detektor und Peiler im Handformat

This handheld drone detector features a compact 800g tactical design with a 1-2km detection range. It supports dual omni/directional scanning to track up to 10 drone targets simultaneously.

Dual-Mode Omni & Directional Tracking
Extensive Multi-Brand Detection Library
High Target Discrimination Capacity
Optimized Power & Tactical Portability

Kategorie: Drohnen-Detektor-Serie Stichworte: Drone Direction Finder, FPV Signal Detector, Handheld Drone Detector, Pocket Anti-Drone, Portable UAV Detection, Tactical RF Scanner

Produktdetails

Indikatorparameter

Erfassungsbereich	1km-2km
Probe azimuth (1)	≤30° (UAV does not change the frequency during the locked DF mode and is 1-2 km from the device)
Probe azimuth (2)	Omni Work frequency: 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.8GHz Directional Work frequency: 2.4GHz, 5.8GHz
Capacity of discernment	The number of drones that can be simultaneously detected and identified ≥ 10
Electrical characteristics	Power dissipation ≤6W, duration ≥6 hours, charging time ≤ 3 hours
Detection and identify UAV type	DJI series, FPV, FEMI, YUNEEC, AUTEL, HUBSAN, Powervision, tello UAV and video transmission module
False alarm rate	1 time / day
Funktionsweise des Akkus	10000mAh, 3.7V, 37Wh
Betriebstemperatur	-20℃~55℃
Schutzstufe	IP64
Größe	235 × 66 × 43mm
Gewicht	800g (Excluding the antenna)

Häufig gestellte Fragen

Q1: How does the device seamlessly transition between wide-area alerts and precise direction finding?: A1: The device utilizes a highly efficient dual-antenna architecture. In standard monitoring mode, it scans across omnidirectional channels (900MHz to 5.8GHz) to provide early warning alerts up to 2km away. Once a target link is established, operators can utilize the directional scanning arrays on the 2.4GHz and 5.8GHz bands to isolate the target’s bearing with an azimuth accuracy of ≤30°.
Q2: Can this handheld system detect custom-built FPV crossing drones and raw video transmission modules?: A2: Yes. Beyond standard commercial drone databases, the RF detection array is specifically optimized to sense analog and digital video transmission modules. This allows it to flag and identify non-standard, custom-built FPV crossing drones that rely on specialized video downlinks to operate.
Q3: How does the system maintain an exceptionally low false alarm rate in complex urban environments?: A3: Urban areas are saturated with background RF noise from Wi-Fi routers and industrial wireless links. This device utilizes specialized signal parsing and data mining algorithms to separate true drone telemetry from environmental clutter. This rigorous filtering structure keeps the false alarm rate down to a highly reliable average of ≤1 time per day.
Q4: What are the primary deployment scenarios for a portable drone detector of this scale?: A4: Weighing only 800g (excluding the antenna) with an IP64 protection rating, this device is built for highly mobile, dismounted security scenarios. It is ideal for VIP foot-patrol protection, temporary event perimeters, tactical military scouting, police field operations, or any facility where heavy, fixed infrastructure installations are impractical.
Q5: What are the charging and power metrics required for continuous field availability?: A5: The unit integrates a heavy-duty 10000mAh (37Wh / 3.7V) lithium battery pack. Thanks to its ultra-low ≤6W power consumption design, a single full charge provides over 6 hours of continuous monitoring. When depleted, the power system supports rapid charging via an external adapter, replenishing the cell to full capacity in ≤3 hours.
