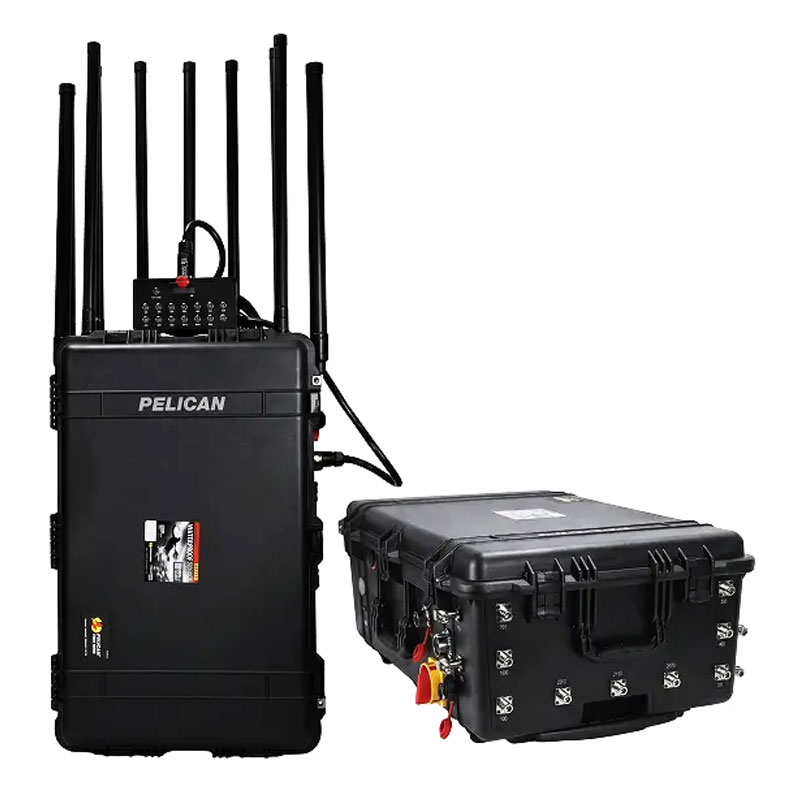

نظام تشويش طائرات الدرون المتعدد النطاقات عالي الطاقة من طراز Tactical Pelicase المزود بعربة نقل
This heavy-duty 350W tactical pelicase drone jammer offers rapid mobile defense up to 2km. Featuring a reinforced 100W 2.4GHz module, a 40Ah battery, and an expandable 6-14 band modular chassis with rugged wheels.
- Concentrated 350W Output with 100W 2.4GHz Reinforcement
- Ultra-Rugged Genuine Pelican Trolley Deployment
- High-Capacity 40Ah Battery & 14-Band Scalability
- Isolated Modular Redundancy & Independent Switching
تفاصيل المنتج
Product description
What distinguishes this product from portable manpacks is its outstanding power output per band. Specifically, the 2.4GHz control and video channel is fitted with a powerful 100W module — double the industry standard. This ensures complete disruption of even the most sophisticated drone control links, including long-range tactical protocols.
- Rugged Protective Enclosure:The entire hardware set is integrated into a shockproof, drop-resistant and fully weather-sealed case, fitted with built-in wheels and a telescopic handle for excellent field mobility.
- Modular 6–14 Band Configuration:The standard version covers 6 key frequency bands, and the system architecture supports expansion up to 14 bands to achieve full spectral coverage.
- High-Capacity Battery:It comes with a large built-in 24V 40Ah battery, delivering long runtime for standalone field operations.
- Independent Channel Control:Each of the 6 high-power modules can be switched on and off separately, enabling operators to adjust interference modes flexibly according to actual threat conditions.
معلمات المؤشر
| Support 6 Bands to 14 Bands | ||
|---|---|---|
| القناة | تردد التشغيل | Output power(±1.5dBm) |
| CH1 433MHz | 428-438 ميغاهرتز | 47 dBm(50W) |
| CH2 900MHz | 840-960 ميجاهرتز | 47 dBm(50W) |
| CH4 1.2G | 1150-1300 ميجاهرتز | 47 dBm(50W) |
| CH3 1.5G | 1570-1620MHz | 47 dBm(50W) |
| CH5 2.4G | 2400-2500 ميجاهرتز | 50 dBm(100W) |
| CH6 5.8G | 5700-5900 ميجاهرتز | 47 dBm(50W) |
| كيفية عمل البطارية من الداخل | 24V, 40Ah | |
| مصدر الطاقة | AC220V | |
| درجة حرارة التشغيل | من -20 درجة مئوية إلى +65 درجة مئوية | |
| إجمالي طاقة الخرج | 350W | |
| استهلاك الطاقة | 700 واط | |
| Gross weight | 32kg | |
| الحجم | 560 × 320 × 640mm | |
| Omni Directional antenna | 6-8 dBi Gain | |
| ملاحظة | تخصيص تردد جهاز التشويش: 20 ميجاهرتز - 8000 ميجاهرتز | |
الأسئلة الشائعة
- Q1: What is the tactical engineering justification for allocating a massive 100W module specifically to the 2.4GHz band?
- A1: The 2.4GHz spectrum is heavily saturated by commercial drone telemetry, industrial remote control protocols, and custom high-power video streams. Standard 50W modules can occasionally experience signal degradation when attempting to breach long-range digital command links or operating near urban RF noise. Providing a dedicated 100W (50dBm) solid-state power amplifier (SSPA) doubles the spectral density, forcing instant connection termination even against military-grade diversity protocols.
- Q2: How does the system’s modular redundancy framework guarantee continuous perimeter protection if an internal module fails?
- A2: Unlike centralized RF systems where an amplifier fault can disable the entire device, this system treats each frequency channel as an completely independent ecosystem with its own separate bias control, power regulator, and RF shielding block. If an extreme field anomaly damages one channel, the internal isolated power distribution network isolates that module, allowing the remaining five bands to maintain their full rated power outputs without interruption.
- Q3: How is the thermal load of a 350W output managed when operating inside a heavy-duty closed Pelican case?
- A3: Dissipating the immense thermal energy generated by high-power amplifiers inside a heavy-duty polymer enclosure requires precise airflow mapping. The system features a forced active air cooling matrix utilizing high-RPM industrial intake and exhaust fans. These fans drive cool air through custom-milled internal aluminum heat-sink corridors and pull hot air out through weatherproof, baffle-protected ventilation grids that block moisture ingress while maintaining thermal stability up to +65°C.
-
