X Band Anti-drone detection radar (SDL-O4D)
Low-altitude surveillance radar designed for long-range UAV detection and continuous tracking in complex operational environments.
- Pulsed Doppler + hybrid scanning architecture
- ≥10 km UAV detection capability
- Wide-area surveillance with 360° coverage
- Multi-platform deployment (fixed, vehicle, portable)
Product Details
Product Overview
The SDL-04D low-altitude surveillance radar is a pulsed Doppler three-coordinate system designed for long-range detection and tracking of UAV targets. It combines azimuth mechanical scanning with elevation phase scanning to provide stable 360° surveillance coverage and accurate target positioning. With enhanced detection range and flexible deployment options, the system is suitable for urban airspace security, perimeter defense, and wide-area surveillance applications.
Key Specifications
| Technical specifications | SDL-04D | |
|---|---|---|
| Radar band | X | |
| Technology system | Linear frequency modulation pulse | |
| Scanning method | Azimuth Mechanical Scanning + Elevation Phase Scanning | |
| Detection distance | Typical target: DJI Phantom 4 | ≥10km |
| Coverage area | Azimuth angle | ±45° |
| Elevation angle | 0°~50° | |
| Detection accuracy | Distance | ≤10m |
| Azimuth angle | ≤0.3° | |
| Elevation angle | ≤0.3° | |
| Data rate | 3s/0.5s | |
| Target capacity | ≥500 block/4 block | |
| Weight | ≤40Kg | |
| Size | ≤650×150×650(mm) | |
| Power consumption | ≤1200W | |
| Installation method | Fixed type, vehicle-mounted type, portable type | |
FAQ
- What is the main function of the SDL-04D radar?
- It is designed for long-range low-altitude UAV detection and continuous airspace surveillance in security-critical environments.
- What makes SDL-04D suitable for wide-area monitoring?
- Its extended detection range and 360° scanning capability enable effective coverage of large surveillance zones.
- What type of targets can it detect?
- It is optimized for small UAVs such as DJI Phantom 4 and similar low-altitude aerial targets.
- What deployment methods are supported?
- The system supports fixed installation, vehicle-mounted deployment, and portable operation modes.
- Is it suitable for mobile operations?
- Yes. Its flexible architecture allows deployment across mobile and tactical surveillance platforms.
Related products
-

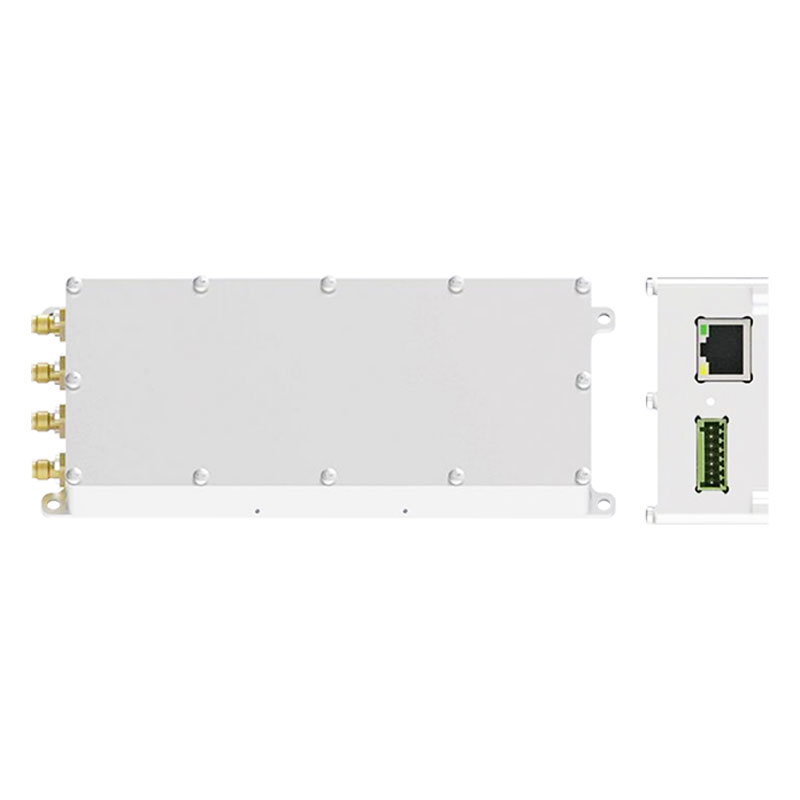

Drone Detection Module – Multi-Band RF Scanner
Module Series -

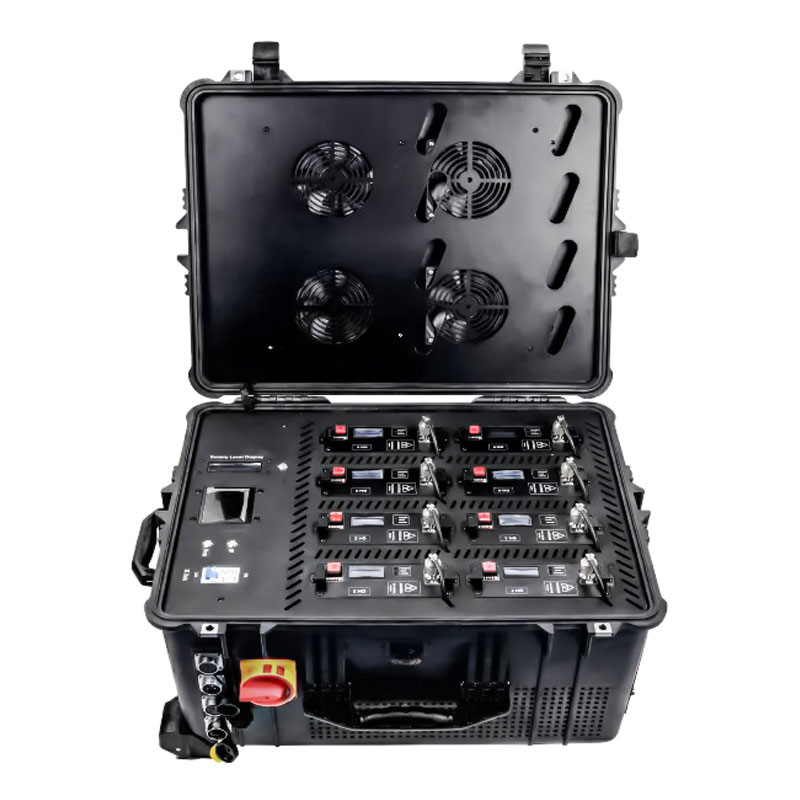

Tactical Mobile Jammer System-20-6300MHz / 8-12 Band DDS
Communication Jammer Series -

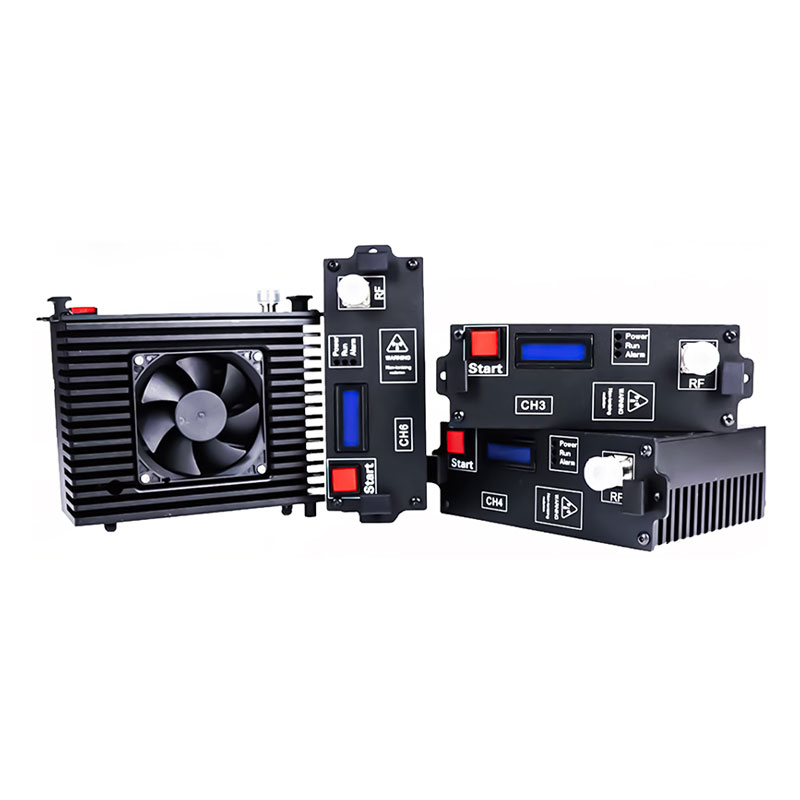

DDS jammer module Multi-Band Interference
Communication Jammer Series -

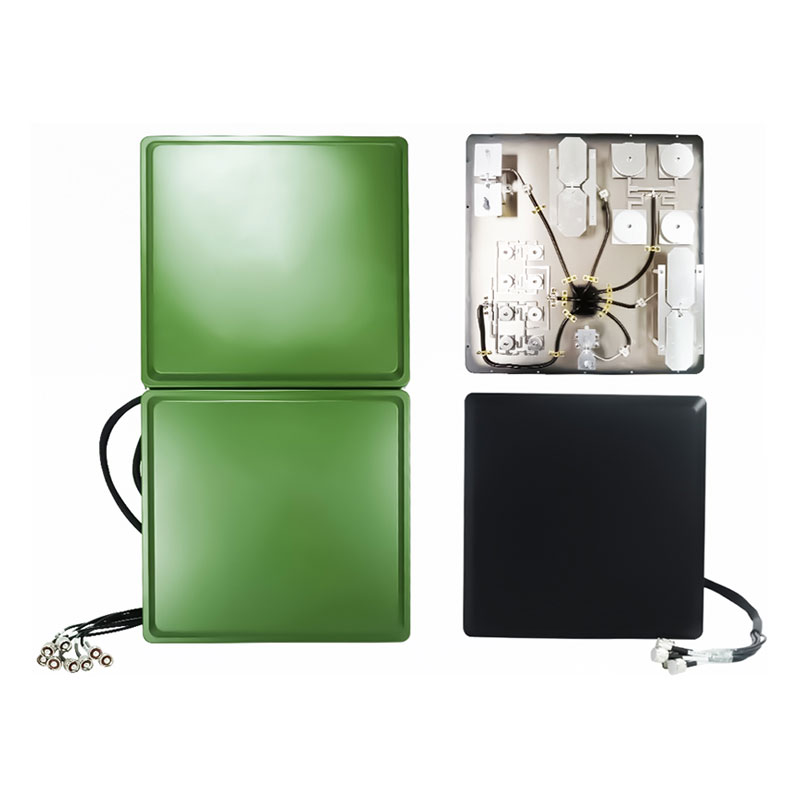

8 Bands Portable Handheld Panel Antenna
