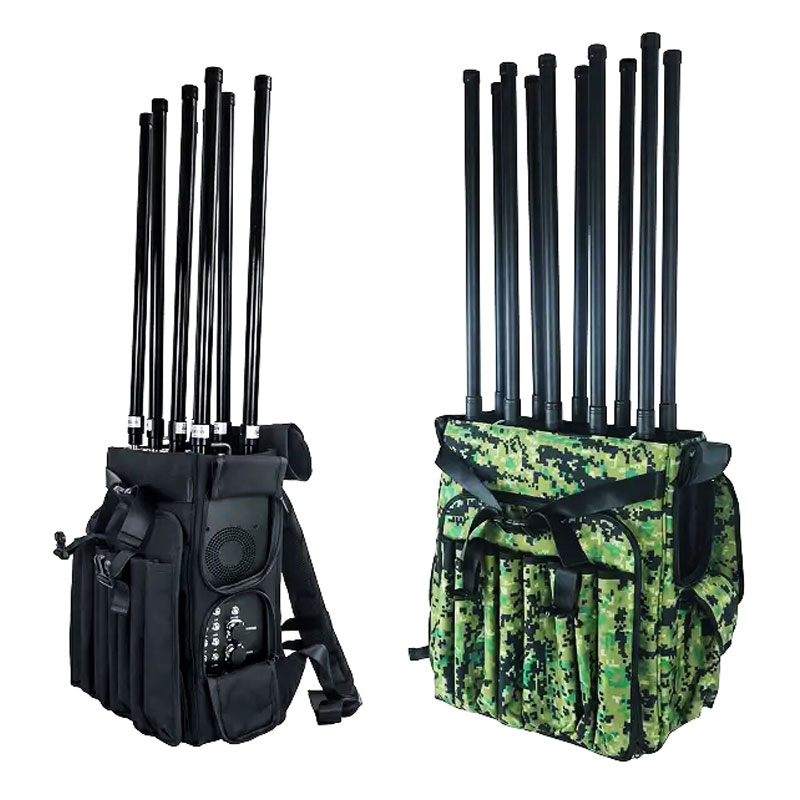

نظام تشويش طائرات بدون طيار تكتيكي محمول على الظهر متعدد النطاقات وعالي الطاقة

This advanced 320W tactical manpack drone jammer provides rapid mobile UAV suppression across 8 channels. Featuring an optimized FPV-focused defense matrix and a 20Ah battery, it delivers 1.5 hours of continuous runtime.

مصفوفة متعددة النطاقات عالية القدرة النارية بقدرة 320 واط
تقنية متخصصة لتعطيل نظام FPV ذات النطاق الترددي العالي
زيادة مدة التشغيل الميداني بفضل دعم مصدر الطاقة المزدوج
تقوية الأجهزة المحمولة المقاومة للصدمات وحماية الدوائر الكهربائية

تفاصيل المنتج

Product description

The core advantage of this product is its intensive focus on common and emerging drone communication frequencies. While other systems may have “blind spots” in newer video transmission links, it provides triple redundancy in the 5.8GHz spectrum, ensuring that even sophisticated commercial and custom FPV drones are blinded and neutralized instantly.

Optimized Power Distribution
Features advanced 50W modules for the most critical command bands (900MHz, 1.2G, 1.5G, 2.4G) to ensure maximum penetration through interference.
FPV-Focused Defense
Equipped with three separate 5.8GHz modules (30W each), providing wide-spectrum disruption for high-bandwidth drone video links.
Extended Battery Operations
Powered by a high-density 24V–28V 20Ah lithium system, it guarantees 1.5 hours of continuous tactical operation with flexible AC/DC external power support.
All-Weather Tactical Housing
Weighing 21 kg, the device adopts a shock-resistant and moisture-proof manpack with reinforced attachment points for comfortable field deployment.

معلمات المؤشر

Support 6 Bands to 12 Bands
القناة	تردد التشغيل	Output power(±1.5 dBm)
CH1 433MHz	428-438 ميغاهرتز	45 dBm(30W)
CH2 900MHz	840-960 ميجاهرتز	47 dBm(50W)
CH3 1.2G	1150-1300 ميجاهرتز	47 dBm(50W)
CH4 1.5G	1570-1620MHz	47 dBm(50W)
CH5 2.4G	2400-2500 ميجاهرتز	47 dBm(50W)
CH6 5.2G	5150-5300 ميجاهرتز	45 dBm(30W)
CH7 5.8G	5700-5900 ميجاهرتز	45 dBm(30W)
CH8 5.8G	5700-5900 ميجاهرتز	45 dBm(30W)
كيفية عمل البطارية من الداخل	1.5h: 24V-28V, 20Ah
مصدر الطاقة	AC 90-260V, DC 24-28V
درجة حرارة التشغيل	-20℃ to +60℃
إجمالي طاقة الخرج	320W
استهلاك الطاقة	640W
الوزن	21kg
الحجم	580 × 400 × 230mm
Omni / Directional antenna	6-12 dBi Gain
ملاحظة	تخصيص تردد جهاز التشويش: 20 ميجاهرتز - 8000 ميجاهرتز

الأسئلة الشائعة

Q1: How does the parallel multi-module configuration optimize defense against modern FPV and high-bandwidth video downlinks?: A1: Modern FPV racing and tactical reconnaissance drones rely heavily on wide-spectrum, high-bandwidth streaming channels within the 5GHz window. By dedicating three individual 30W solid-state modules across the 5.2GHz and 5.8GHz bands simultaneously, the system creates overlapping spectral saturation. This multi-module approach floods the entire video downlink window, instantly cutting the pilot’s live feed and forcing the target into an unguided state.
Q2: How does the system safely manage the ergonomics and physical load of a high-power 21kg tactical manpack?: A2: A 320W RF system requires heavy-duty battery cells and robust structural heat sinks, bringing the total weight to 21kg. To make this load manageable for field personnel, the housing features an advanced ergonomic harness with reinforced, padded shoulder straps and weight-distributing hip supports. Furthermore, the internal antenna backplanes are shielded to minimize rear RF energy leakage, ensuring safe operation during prolonged dismounted patrols.
