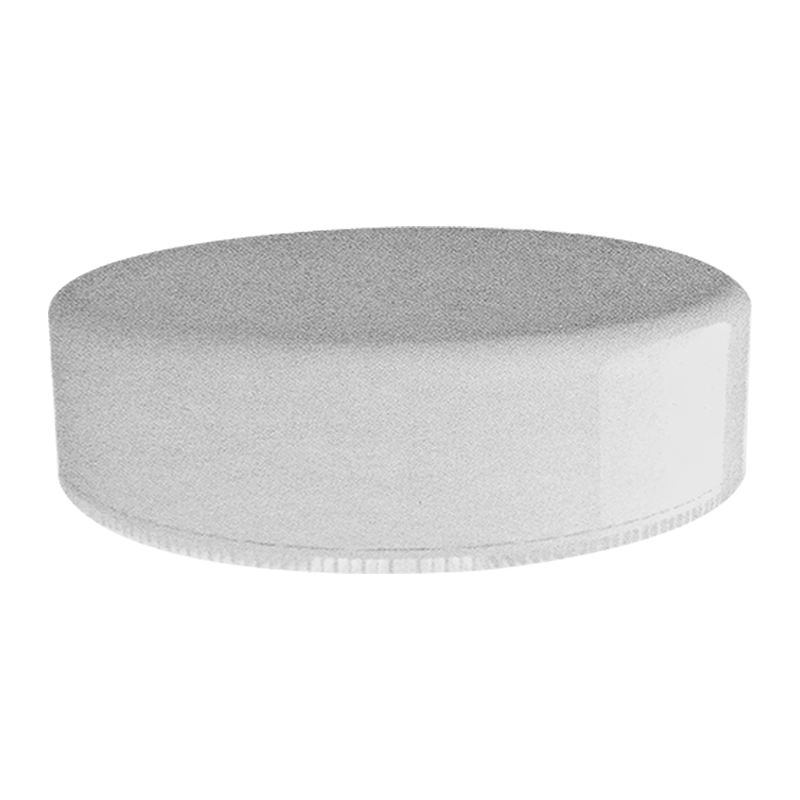

Ka 0.2m Hybrid Scanning Phased Array Satellite Terminal

This compact hybrid-scan phased array airborne terminal uses an integrated cooling and protective design. Small size, easy to carry and install. Suitable for medium-to-high data-rate on-the-move and portable station applications.

Combines electronic and mechanical scanning. Supports carrier/beacon satellite pointing. Auto network entry.
Meets DO-160 requirements. Stable tracking in harsh conditions.
Supports online software upgrades and configuration updates.

Category: Satellite Communication Terminals Tags: Compact Antenna System, Ka Band SATCOM, Mobile Satellite Terminal, Phased Array Terminal

Product Details

Product Overview

The Ka 0.2m hybrid scanning phased array satellite terminal is designed for airborne, mobile, and portable communication applications requiring medium to high data-rate connectivity. The system combines electronic beam steering with mechanical scanning technology to achieve stable satellite acquisition and reliable tracking performance in dynamic environments.

Its integrated thermal management and protective structure enable compact deployment while maintaining reliable operation in demanding outdoor and mobile conditions.

Key Specifications

Equivalent Aperture	0.2m
Operating Frequency Range	Tx: 29.0GHz ~ 30.0GHz; Rx: 18.7GHz ~ 20.2GHz
Transmit EIRP	≥ 39dBW
Receive G/T	≥ 5dB/K
Polarization	Circular polarization, LHCP / RHCP adjustable
Working Angle	Azimuth: 0° ~ 360°, Off-axis angle: ±60°
Tracking Accuracy	Better than 1/8 of half-power beamwidth
Power Consumption	≤ 180W
DC Power Supply	+24VDC
Dimensions	≤ φ360mm * H100mm
Antenna Weight	≤ 5.5kg
Protection Rating	IP65

FAQ

What is the Ka 0.2m hybrid scanning phased array terminal designed for?: It is designed for airborne, vehicle-mounted, and portable satellite communication systems that require stable connectivity and medium to high data-rate transmission during movement.
What is the advantage of hybrid scanning technology?: The system combines electronic beam steering with mechanical scanning to improve tracking stability, satellite acquisition speed, and overall communication reliability in dynamic environments.
Does the terminal support automatic satellite acquisition?: Yes. The terminal supports carrier and beacon acquisition modes with automatic network entry for simplified deployment and operation.
Can the terminal operate in harsh environments?: Yes. The system is designed according to DO-160 environmental requirements and features IP65 protection for reliable outdoor and mobile operation.
Where can this terminal be applied?: Typical applications include airborne communication systems, emergency communication platforms, mobile command vehicles, maritime communication, and portable SATCOM deployment.
