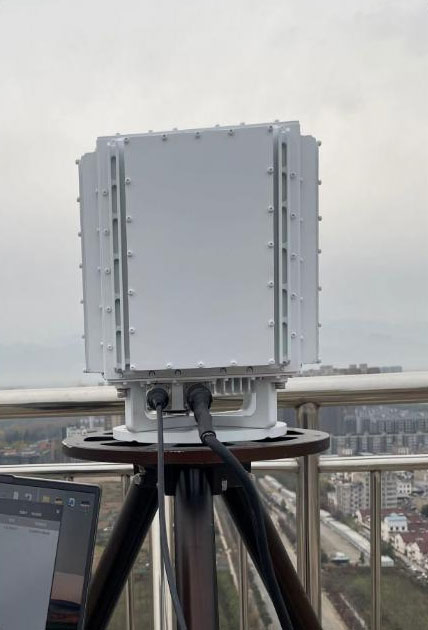

G-Series Ku-band Low-Altitude Surveillance Radar (SDL-G03Q)
Ku-band DBF low-altitude surveillance radar designed for real-time ground and water surface target detection and tracking.
- Ku-band DBF + multi-phase center angle measurement
- 360° full coverage surveillance capability
- Ground and water surface target tracking
- Real-time alerts and target recording functions
Product Details
Product Overview
The SDL-G03Q low-altitude surveillance radar is designed for real-time detection and tracking of ground and water surface moving targets. Based on Digital Beamforming (DBF) technology and multi-phase center angle measurement, it provides accurate target information including distance, speed, and azimuth. The system supports 360° coverage and stable all-weather operation, making it suitable for perimeter security, coastal monitoring, and boundary protection applications.
Key Specifications
| Working Frequency | Ku-band |
| Operating Mode | Integrated DBF technology and multi-phase center angle measurement technology |
| Scanning Range | 360° |
| Range | 5km |
| Detection Range | ≥2 km (personnel) ≥5 km (small vehicle) |
| Detection Accuracy | Distance: ≤3 m Azimuth: ≤0.4° |
| Communication Interface | Gigabit Ethernet aviation connector |
| Weight | ≤14Kg (Main unit only) |
Application scenario diagram
FAQ
- What is the main function of the SDL-G03Q radar?
- It is designed for real-time detection and tracking of moving targets on ground and water surfaces in surveillance applications.
- What makes SDL-G03Q different from standard airborne surveillance radars?
- G03Q is optimized for ground and water surface monitoring, providing stable detection of non-airborne moving targets with high accuracy.
- What technologies does the system use?
- It uses Ku-band DBF technology combined with multi-phase center angle measurement for precise target positioning and tracking.
- What types of targets can it detect?
- It can detect personnel and small vehicles moving on ground or water surfaces within its coverage area.
- What application scenarios is it suitable for?
- It is suitable for coastal surveillance, border security, perimeter protection, and restricted area monitoring.
