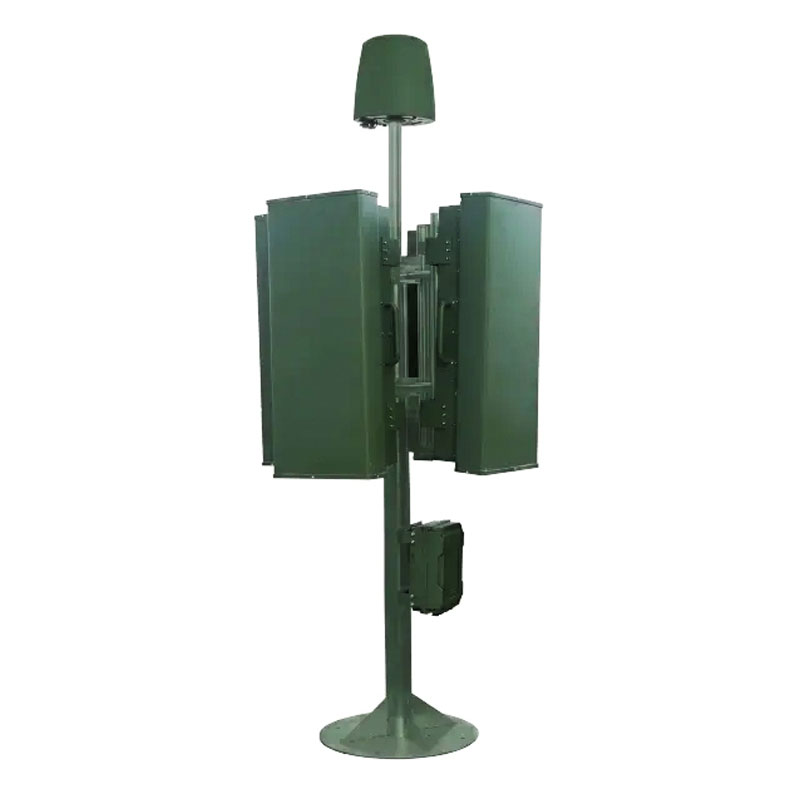

نظام متكامل للكشف عن الطائرات بدون طيار وتشويش من الجوانب الأربعة في موقع ثابت

This fixed-position C-UAS solution integrates full-band RF detection (1–5km) with a 4-sided jamming array (1–4km). Operating from 100–6000MHz, it automatically tracks drones and localizes pilots.

Full-Band Passive RF Detection with High Sensitivity
Deadlock-Free 4-Sided Jamming Matrix
Real-Time Trajectory Tracking & Pilot Localization
Autonomous Smart Mitigation & Structural Hardening

الفئة: سلسلة أجهزة تشويش الطائرات بدون طيار العلامات: مصفوفة تشويش رباعية الجوانب, Automatic Anti-Drone Shield, Drone Operator Localization, Full-Band Drone Detection, نظام متكامل لمكافحة أنظمة الطائرات بدون طيار (C-UAS), جهاز تشويش ثابت للطائرات بدون طيار

تفاصيل المنتج

ميزات المنتج

This fixed-position system integrates drone detection and jamming functions, consisting of a drone detection unit and a four-sided drone jamming array. It supports full-band detection with a coverage radius of 1–5 km and can accurately identify drone signals within the detection area. The matched four-sided jamming array provides omnidirectional jamming over a 1–4 km radius, covering the frequency range from 100 MHz to 6000 MHz. It supports manual and automatic working modes to suppress and neutralize drone signals in the monitored area. (Optional: GPS Spoofing)

It achieves full-band detection (100 MHz–6000 MHz) within a 1–4 km radius. Equipped with an extensive drone signature database, the system can accurately identify signals from mainstream commercial drone brands (such as DJI, Autel, FIMI, etc.), FPV drones and DIY drones, and effectively lower false alarm rates.
The four-sided jamming array forms an all-round jamming unit. With coordinated operation across multiple sides, it delivers gap-free electromagnetic coverage for airspace within a 1–4 km radius, even under complex electromagnetic and terrain conditions.
The system supports drone trajectory tracking and operator localization.

المواصفات الرئيسية

طراز طائرة بدون طيار يمكن رصده	DJI、AUTEL、FPV drones
تواتر الكشف	100 ميجاهرتز – 6000 ميجاهرتز
تردد التشويش	433MHz, 700MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz, (Customization 20MHz-8000MHz)
نطاق الكشف	1 كم - 5 كم (يختلف حسب البيئة وطراز الطائرة بدون طيار)
نطاق تحديد المواقع	1 كم - 5 كم (يختلف حسب البيئة وطراز الطائرة بدون طيار)
مسافة العداد	1km-4km (Varies due to environment and drone model)
تسجيل السجلات	يدعم ما لا يقل عن 500 سجل إنذار
حساسية الكشف	أفضل من -96 ديسيبل ميليوات
استهلاك الطاقة	1200 واط
جهد الإمداد الخارجي	100 ~ 240V AC
درجة حرارة التشغيل	-20~65 درجة مئوية
مقاوم للماء	IP65 (عند إغلاق الغطاء)

الأسئلة الشائعة

Q1: How does the passive RF detection system maintain low false alarm rates across such a wide spectrum (100MHz-6000MHz)?: A1: The integrated detection module utilizes high-dynamic-range spectrum scanning receiver networks featuring a sensitivity threshold better than -96dBm. By matching incoming signals against an extensively updated firmware library of drone RF profiles—covering DJI, Autel, FIMI, analog/digital FPV frequencies, and custom DIY hopping links—the system filters out complex city background noise to prevent false alerts while remaining completely silent to outside observers.
Q2: How does the system successfully calculate drone trajectories and localize remote operators?: A2: The detection array relies on highly accurate passive direction-finding (DF) sensor lines. By executing real-time mathematical triangulation algorithms on the transmission streams between the drone’s telemetry downlink and the operator’s control uplink, the processing unit establishes precise path arrays and origin coordinates across a 1-5km zone without revealing its own location.
Q3: How does the system handle historical data collection and power architecture during long-term outdoor deployment?: A3: The system is fully engineered for rugged, long-term infrastructure security, boasting an IP65 weather-sealed enclosure designed to operate continuously from -20°C up to 65°C. For post-incident analytics, the system stores at least 500 complete historical alarm and countermeasure logs. The entire setup is optimized to pull a controlled 1200W maximum load, operating directly off utility-standard universal 100–240V AC power inputs.
